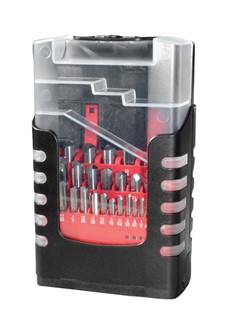

24-Pc Carb Unc Straight Flute Drill Set 1mm - 12.5mm x 0.5mm

Part Number: 470-000024

UPC: 888226264020

Monster Tool is sold through distributors all over the country.

Capable of producing reamer type finishes in work hardened and abrasive materials. Designed for: chrome alloys, heat alloys, nickel alloys, titanium alloys, steel and stainless steel weldments.

Product Dimensions: 7.28" H x 2.48" W x 4.53" L

Master Legend

Applications:

Materials:

Speeds & Feeds:

For recommended speeds & feeds
for this product click here

Availability:

Usually ships SAME DAY
if ordered before 6pm Eastern

Shipping:

Via UPS from California -
Weight: 2.92lbs

Brand: Monster

Diameter: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 10.5, 11.0, 11.5, 12.need& 12.5

Diameter
(Metric): 1.02mm

Set Piece Count: 24

Included Angle: 140°

Material: Solid Tungsten Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Spiral Direction: Right Hand

Coolant Through: External Coolant

Web Thinning: Thinned

Diameter Tolerance: +0.0000 / -0.0005

NOTE: Contains: 470-400394, 470-400591, 470-400787, 470-400984, 470-401181, 470-401378, 470-401575, 470-401772, 470-401969, 470-402165, 470-402362, 470-402559, 470-402756, 470-402953, 470-403150, 470-403346, 470-403543, 470-403740, 470-403937, 470-404134, 470-4
