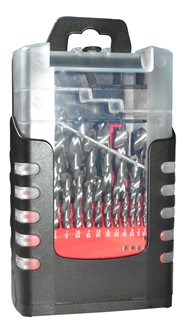

21-Pc Carb AlTiN Straight Flute Drill Set 1/16 - 3/8 x 1/64

Part Number: 470-000021B

UPC: 888226264013

Monster Tool is sold through distributors all over the country.

Capable of producing reamer type finishes in work hardened and abrasive materials. Designed for: chrome alloys, heat alloys, nickel alloys, titanium alloys, steel and stainless steel weldments.

Product Dimensions: 7.28" H x 2.48" W x 4.53" L

Master Legend

Applications:

Materials:

Speeds & Feeds:

For recommended speeds & feeds
for this product click here

Availability:

Usually ships SAME DAY
if ordered before 6pm Eastern

Shipping:

Via UPS from California -
Weight: 1.67lbs

Brand: Monster

Diameter: 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64 & 3/8"

Diameter
(Metric): 0.00mm

Set Piece Count: 21

Included Angle: 140°

Material: Solid Tungsten Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Spiral Direction: Right Hand

Coolant Through: External Coolant

Web Thinning: Thinned

Diameter Tolerance: +0.0000 / -0.0005

NOTE: Contains: 470-100625B, 470-100781B, 470-100938B, 470-101094B, 470-101250B, 470-101406B, 470-101562B, 470-101719B, 470-101875B, 470-102031B, 470-102188B, 470-102344B, 470-102500B, 470-102656B, 470-102812B, 470-102969B, 470-103125B, 470-103281B, 470-103438B
