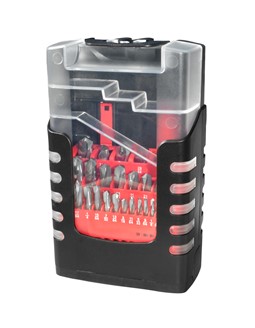

29-Pc Carb Unc Screw Machine Drill Set 1/16 - 1/2 x 1/64

Part Number: 460-000029

UPC: 888226263962

Monster Tool is sold through distributors all over the country.

Precision drilling in cast iron, stainless steel, tool steel, titanium and nickel alloys.

Product Dimensions: 7.28" H x 2.48" W x 4.53" L

Master Legend

Applications:

Materials:

Speeds & Feeds:

For recommended speeds & feeds
for this product click here

Availability:

Usually ships SAME DAY
if ordered before 6pm Eastern

Shipping:

Via UPS from California -
Weight: 3.16lbs

Brand: Monster

Flutes: 2

Diameter: 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64 & 1/2"

Diameter
(Metric): 0.00mm

Set Piece Count: 29

Material: Solid Tungsten Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Spiral Direction: Right Hand

Coolant Through: External Coolant

Web Thinning: Thinned

Diameter Tolerance: +0.0000 / -0.0005

NOTE: Contains: 460-100625, 460-100781, 460-100938, 460-101094, 460-101250, 460-101406, 460-101562, 460-101719, 460-101875, 460-102031, 460-102188, 460-102344, 460-102500, 460-102656, 460-102812, 460-102969, 460-103125, 460-103281, 460-103438, 460-103594, 460-1
