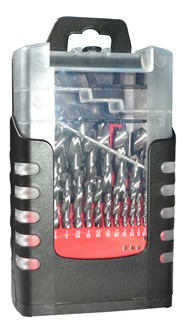

21-Pc Carb Unc Twist Drill Set 1/16 - 3/8 x 1/64

Part Number: 450-000021

UPC: 888226263849

Monster Tool is sold through distributors all over the country.

Precision drilling in: non-ferrous alloys, cast iron, plastics, aluminum and highly abrasive materials.

Product Dimensions: 7.28" H x 2.48" W x 4.53" L

Master Legend

Applications:

Materials:

Speeds & Feeds:

For recommended speeds & feeds
for this product click here

Availability:

Usually ships SAME DAY
if ordered before 6pm Eastern

Shipping:

Via UPS from California -
Weight: 2.23lbs

Brand: Monster

Diameter: 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64 & 3/8"

Diameter
(Metric): 0.00mm

Set Piece Count: 21

Tool Length: Jobber

Helix: 25°

Flute Type: Spiral

Material: Solid Tungsten Carbide

Material Grade: C-2 Sub-Micron

Spiral Type: Twist

Cut Direction: Right Hand

Spiral Direction: Right Hand

Coolant Through: External Coolant

Web Thinning: Thinned

Diameter Tolerance: +0.0000 / -0.0005

NOTE: Contains: 450-100625, 450-100781, 450-100938, 450-101094, 450-101250, 450-101406, 450-101562, 450-101719, 450-101875, 450-102031, 450-102188, 450-102344, 450-102500, 450-102656, 450-102812, 450-102969, 450-103125, 450-103281, 450-103438, 450-103594 &
