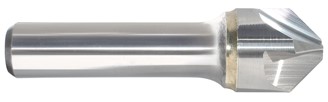

1/4-60° 4FL CARB CNSK

Part Number: 334-003050

UPC: 888226168151

Monster Tool is sold through distributors all over the country.

Designed for general purpose countersinking, chamfering and deburring in most ferrous and non-ferrous materials. Larger sizes are solid carbide heads, induction brazed onto hardened steel shanks to ensure a solid and safe-secure bond.

Product Dimensions: 0.45" H x 0.45" W x 3.35" L

Master Legend

Applications:

Materials:

Speeds & Feeds:

For recommended speeds & feeds
for this product click here

Availability:

Usually ships SAME DAY
if ordered before 6pm Eastern

Shipping:

Via UPS from California -
Weight: 0.04lbs

Brand: Monster

Flutes: 4

Diameter: 1/4"

Diameter
(Decimal Inch): 0.2500 in.

Diameter
(Metric): 6.35mm

Shank Diameter: 1/4"

Shank
(Decimal Inch): 0.2500 in.

Overall Length: 2"

Overall Length
(Decimal Inch): 2.0000 in.

Includes Pilot: No

Single/Double End: Single End

Finish: Bright

End Style: 60° Included Angle

Included Angle: 60°

Flute Type: 0

Material: Solid Tungsten Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Centerline Angle: 30

Countersink Application: Countersinking

Countersink Head Only: No
