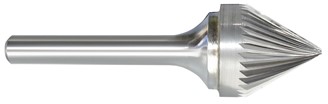

SJ-9 60° ANGLE S/C

Part Number: 310-001167
UPC: 888226067393

Monster Tool is sold through distributors all over the country.

General purpose single cut flute pattern provides for good material removal and work piece finishes. Designed for: acute angle machining, chamfering and countersinking in brass, bronze, copper, cast iron, 45-60 Rc steels, carbon steel, nickel chrome steel, stainless steel, steel weldments and titanium.
Product Dimensions: 1.14" H x 1.14" W x 5" L
Applications:
Materials:
Speeds & Feeds:
For recommended speeds & feeds
for this product click here
Availability:
Usually ships SAME DAY
if ordered before 6pm Eastern
Shipping:
Via UPS from California -
Weight: 0.33lbs
Brand: Monster
Industry Specification: SJ-9
Flutes: Single Cut
Diameter: 1"
Diameter
(Decimal Inch):
1.0000 in.
Diameter
(Metric):
25.40mm
Length of Cut: 15/16"
Length of Cut
(Decimal Inch):
0.938 in.
Shank Diameter: 1/4"
Shank
(Decimal Inch):
0.2500 in.
Overall Length: 2-11/16"
Overall Length
(Decimal Inch):
2.6875 in.
Single/Double End: Single End
Tool Length: Regular
Finish: Bright
End Style: 60° Cone
Included Angle: 60°
Flute Type: 0
Material: Tungsten Carbide
Material Grade: C-2 Sub-Micron
Cut Direction: Right Hand
